Brushless gelijkstroom-motor
Created with Pixso. 24v 250w Nema23 borstelloze DC motor hoog koppel lage snelheid

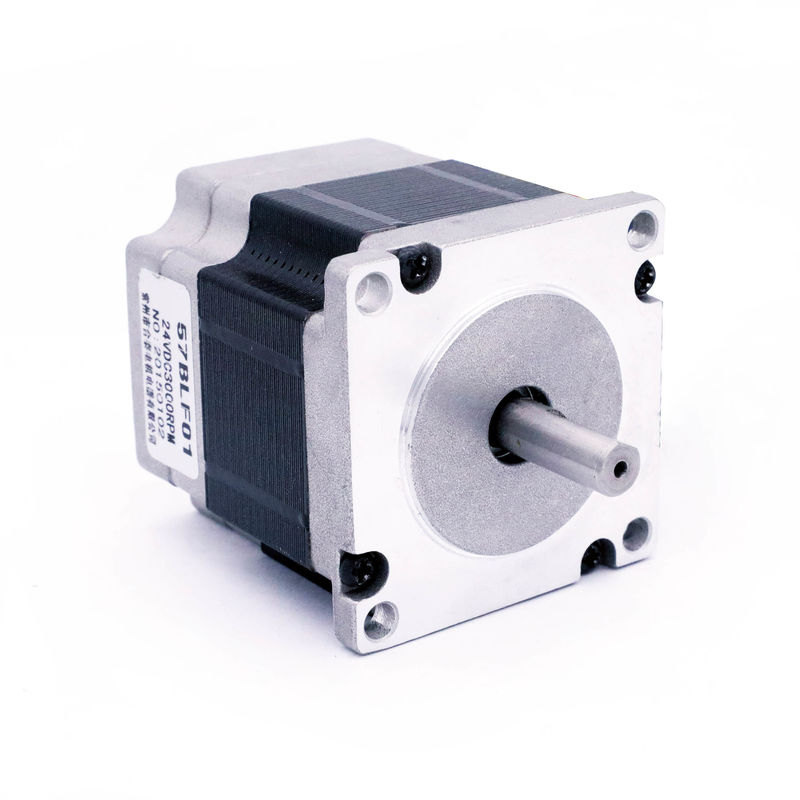

24v 250w Nema23 borstelloze DC motor hoog koppel lage snelheid

Merknaam: HeTai
Modelnummer: 57BLF
MOQ: 50
Prijs: USD
Levertijd: 25 DAGEN
Betalingsvoorwaarden: L/C, D/P, T/T, Western Union, MoneyGram
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
CE ROHS ISO
Productnaam:
brushless gelijkstroom-motor
Windend type:
Ster
Isolatie klasse:
B.
Omgevingstemperatuur:
-20°C~+50°C
Hall Effect Angle:
120° elektrohoek
Nominale snelheid:
3800 t/min
Isolatieweerstand:
100MΩ Min.500VC gelijkstroom
Dielectrische sterkte:
600VAC 1 Minuut
Maximale radiële kracht:
115N (10 mm van de voorflens)
Max Axial Force:
45N
Verpakking Details:
Karton met Binnenschuimdoos, Pallet
Levering vermogen:
10000 PCs/maand
Markeren:

nema 34 bldcmotor

,

de motor van 24v 250w bldc

,

57blf motor

Productbeschrijving

57BLF nema 34 hoog koppel IP40 borstelloze motor DC 250W voor robotarm



57BLF01 3-fase 8-pool Spanning 24V, nominale stroom 3,33A, nominale koppel 0,2 Nm

57BLF02 3 fase 8 polen Spanning24V, nominale stroom6.67A,Nominaal koppel0.4 Nm

57BLF03 3 fase 8 polen Spanning24V, nominale stroom10A,Nominaal koppel0.6 Nm

57BLF04-001 3-fase 8 polen Spanning 36V, nominale stroom8.87A,Nominaal koppel0.8 Nm



Elektrische specificatie:

    Model Model Model Model
Specificatie Eenheid 57BLF01 57BLF02 57BLF03 Vervaardiging
Aantal fasen Fase 3
Aantal Polen Pools 8
Nominale spanning VDC 24 36
Nominale snelheid Rpm 3000 3000 3000 3000
Nominale stroom Een 3.33 6.67 10.0 8.87
Nominaal koppel N.m. 0.2 0.4 0.6 0.8
Nominaal vermogen W 80 125 188 251
Piekkoppel N.m. 0.6 1.2 1.8 2.4
Piekstroom Amperen 10.0 20.0 30.0 26.6
Torkconstante N.m.A. 0.06 0.06 0.06 0.09
Terug EMF constante V/kRPM 6.3 6.3 6.3 9.47
Lichaamslengte mm 59 80 101 122
Gewicht Kilo's 0.61 0.94 1.25 1.59



*Producten kunnen op speciale aanvraag worden aangepast.

*Producten kunnen overeenkomen met versnellingsbak 42, 52, 56, 63 mm



Bedradingsdiagram

FUNCTIE Kleuren
+5V Rood UL1007 26AWG
ZAL A Geel
HALLB Groen
HALLC Blauw
GND Zwarte
FASE A Geel UL1015 20AWG
Fase B Groen
FASE C Blauw


Mechanische dimensie

24v 250w Nema23 borstelloze DC motor hoog koppel lage snelheid 0



Changzhou Hetai Motors is een ervaren motorfabrikant.We hebben variabele productieapparatuur., zoals assemblagelijnen, automatische cilindrische slijpmachines en CNC-bewerkingscentra.24v 250w Nema23 borstelloze DC motor hoog koppel lage snelheid 1
